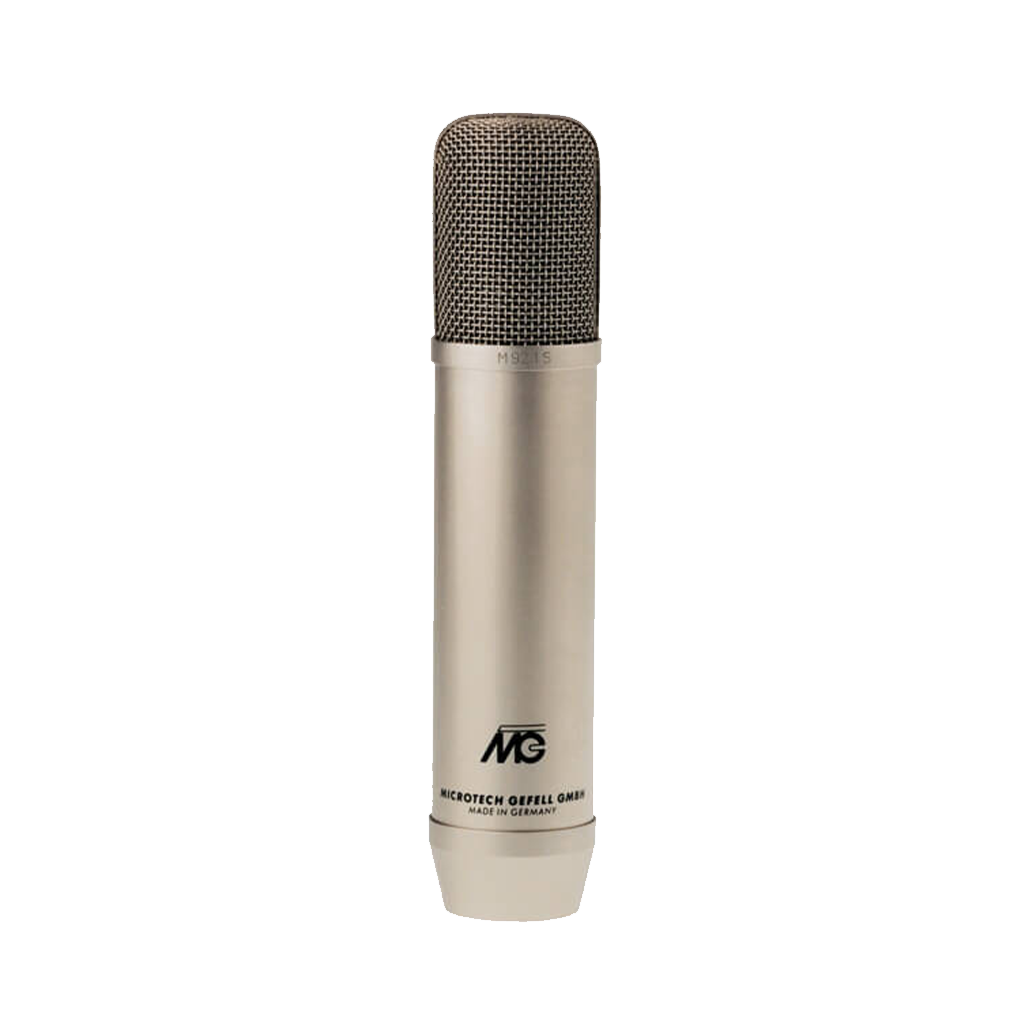

The studio microphone M 92.1 S is equipped with the legendary PVC capsule M 7, which has a unique sound. This works as a pressure gradient receiver with two gold-coated plastic membranes. The M 92.1 S is characterized by a large signal-to-noise ratio and high transmission factor. It has the warm, full sound typical of tube microphones, which is particularly preferred by singers and soloists.
The power supply unit N 920.1 supplies the polarization voltage for the capsule and the operating voltages for the tube preamplifier. This is equipped with a pentode working as a triode, which is selected with regard to its acoustic behavior.
Technical specifications
*Directional characteristic - kidney
*Acoustic way of working - Pressure gradient receiver
*Transmission range - 20 Hz to 20,000 Hz
*Sensitivity at 1 kHz - 19 mV / Pa
*Nominal impedance - 200 ohms
*Equivalent noise level - according to CCIR 468-4 - 25 dB
according to DIN EN 60268-4 - 15 dB-A
*Signal-to-noise ratio - CCIR-rated (based on 1 Pa at 1 kHz) - 69 dB
A-weighted (based on 1 Pa at 1 kHz) - 79 dB
*Limit sound pressure level at 0.5% distortion factor - 118 dB
*Dynamic range - 103 dB
*Operating voltage - 120 V-
*Anode current - 1 mA
*Heating voltage - 5.8 mV-
*Heating current - 200 mA
*Tube (low noise and sound) - EF 86
*Connection fitting - 7-pole, Tuchel C 70 / A
*weight - 430 g
*length - 197 mm
*diameter - 42 mm
