Full-fat analogue tone.

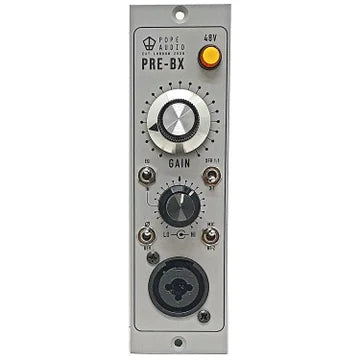

The Pre-BX is an all analogue microphone preamplifier with character and versatility at the forefront of its design ethos. It features an API-style input and Carnhill transformer output, integrated BAX EQ for subtle tone shaping, and a clean, intuitive interface for ease of operation.
The PRE-BX employs an integrated Baxandall EQ with both high-end and low-ends controls independently adjustable via the dual-concentric pot. Whether adding natural-sounding top-end sparkle to acoustic instruments or darkening harsher sounding program material it is perfect for honing a stunning vintage tone at the source.

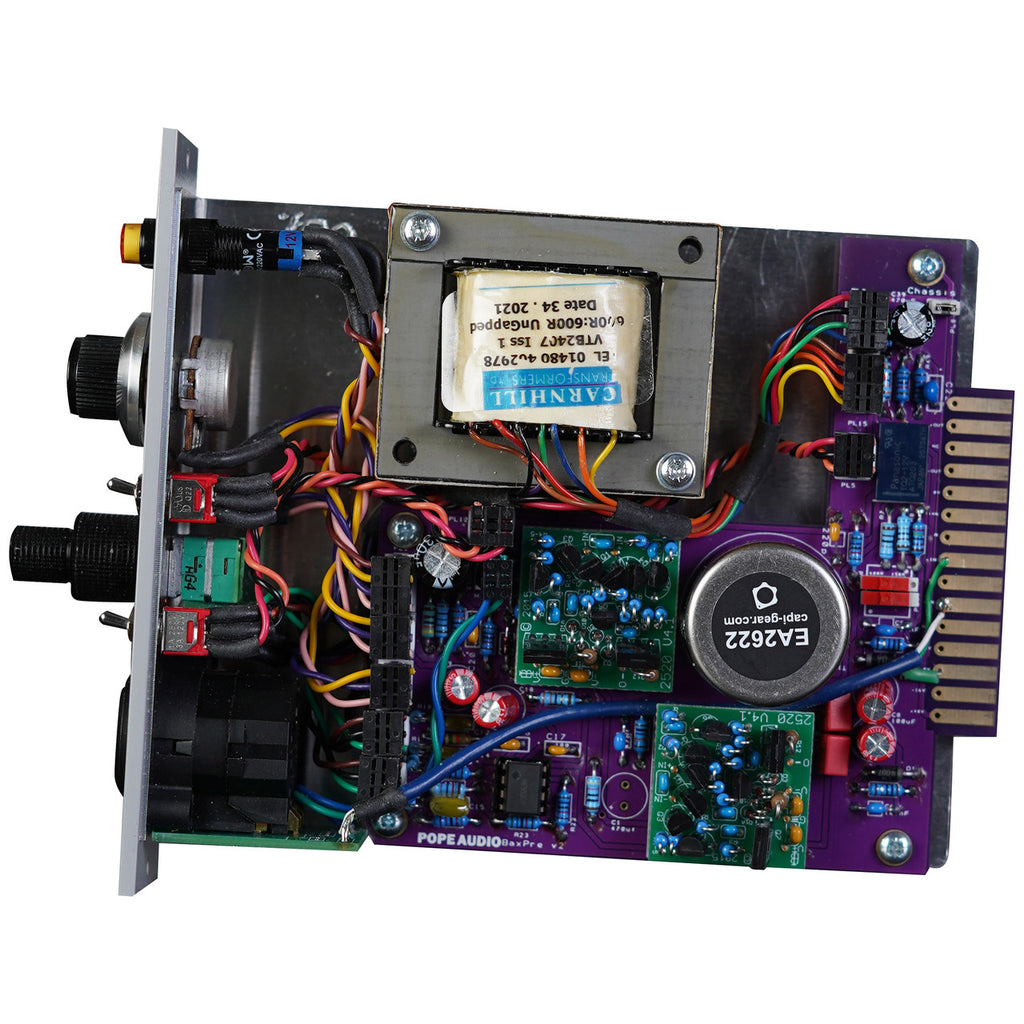

A 1:1/3:1 output attenuator switch allows the Carnhill Transformer to be driven into saturation on bass-heavy material, alongside controls for phase switching, Mic/Hi-Z front input selector, +48v Phantom power for condenser microphones and an internal impedance selector for low-output mics such as vintage ribbons or dynamics.
Key Features:
* Integrated Baxandall EQ (20Hz – 20kHz @ -/+7dB approx)
* Fully analogue signal path with approx 60dB mic gain
* Carnhill output transformer with 3:1 attenuator
* API-style input transformer
* Alternative front-panel mic/hi-Z input
* Phase Switch
* Hand-built in the UK
