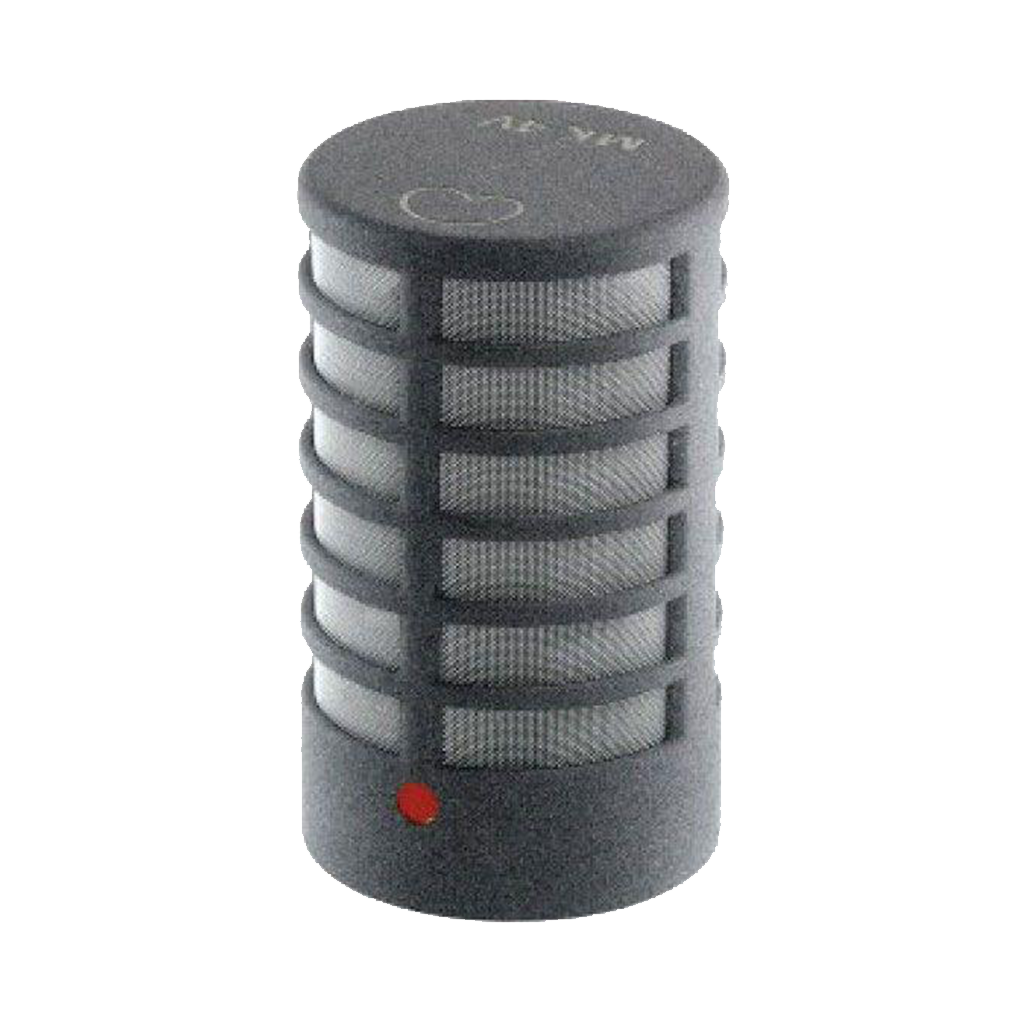

Schoeps Mikrofone MK 4V Cardioid Capsule. Side Addressed

  • Sale
  • Regular price $1,520.00
+ Free Shipping

In stock with Supplier
Orders are shipped in 7 - 10 business days.

Questions? Spot a better price?
Call +64 9 845 7800 or Contact us


The directional response is especially well maintained even at higher frequencies, due to the acoustically transparent housing. There is less high-frequency emphasis of off-axis sound than occurs with most small, axial-response cardioids. The MK 4V still sounds somewhat brighter than the MK 4, however, because of its overall frequency response.

The MK 4V was created in answer to requests for a cardioid with its main axis along the side. In addition to its usefulness in the concert hall, this capsule type is of particular value in speech recording, since its slight emphasis around 10 kHz helps to improve intelligibility.

For speech applications, we offer the pop filter PR 120 SV.


* Cardioid, side-addressed

* Mild high-frequency elevation

* Preferred applications: as spot microphone in orchestra; in double MS setup


*Pickup pattern - Cardioid

*Frequency range - 40 Hz - 19 kHz with CMC 6 / CMR

                                            40 Hz - 38 kHz with CMC 6xt

*Sensitivity - -36,5 dB (V/Pa), 15 mV/Pa with CMC 6

*Equivalent noise level (A-weighted) - 13 dB with CMC 6

*Equivalent noise level (CCIR) - 23 dB with CMC 6

*Signal-to-noise ratio (A-weighted) - 81 dB with CMC 6

*Maximum sound pressure level (THD < 0.5 %) - 131 dB-SPL with CMC 6

*Length - 34 mm

*Diameter - 20 mm

*Weight - 18 g

*Surface finish - matte gray
                         custom color:  nickel, chromagreen
