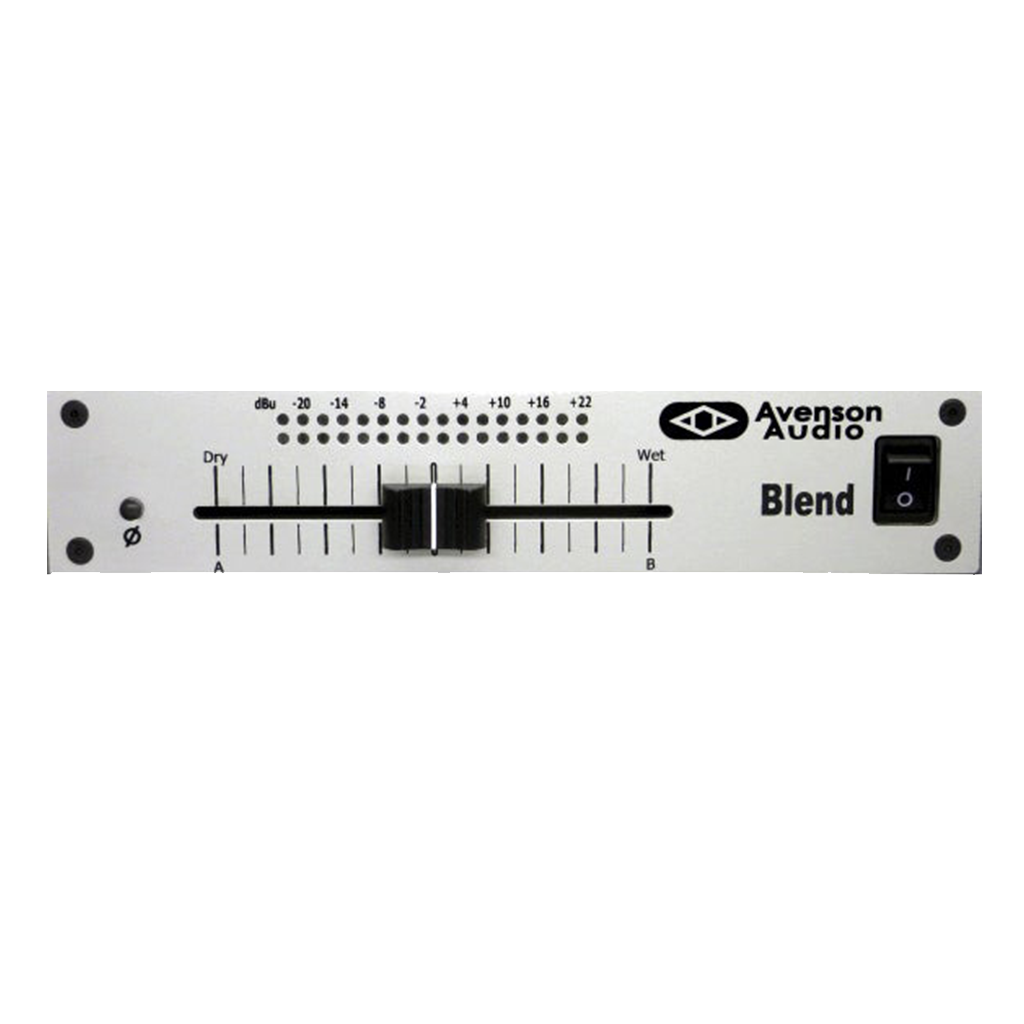

The Blend is a two source stereo mixer that operates as a cross fader between the sources. This is an ideal tool to use for parallel processing or to quickly mix a couple sources while tracking. The polarity feature allows you to flip the phase 180 degress on the B (or wet) input to either correct a cabling issue or to null or cancel the input. Stereo 16 segment output LED meters allow you to see your levels clearly and the 100mm fader gives you very fine level control.
Both the Avenson Audio Mid-Side and the Blend are designed to be transparent tools to compliment your analog outboard gear. Short, clean signal paths keep the signals true to the source while expanding the versatility in processing.
All the Input and Outputs are balanced on 0.25″ TRS connectors. The A (or Dry) inputs are copied to an A (or Dry) output to allow you to loop through the Blend similar to a patchbay. Housed in an attractive half rack width enclosure with an optional stainless steel rack shelf, the Blend is ready to add more processing power to your racks. Specifications:
* Input Overload Level: +27dbu (0.1% THD)
* Crosstalk: ≤ -80 db (@ 1kHz +4dbu)
* Frequency Response: 5 Hz (-0.2db) – 91 kHz (-2 db)
* Signal to Noise: ≥ 115 dB 100kHz bandwidth
* Power Requirements: 85-260 VAC 50/60 Hz <10W
* Size: 8.55 x 1.75 x 6.3 inches 217 x 45 x 160 mm
* Weight 2.7 lbs (1.18 kg)
