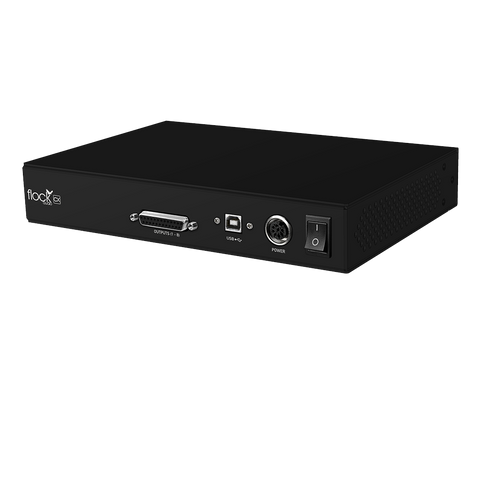

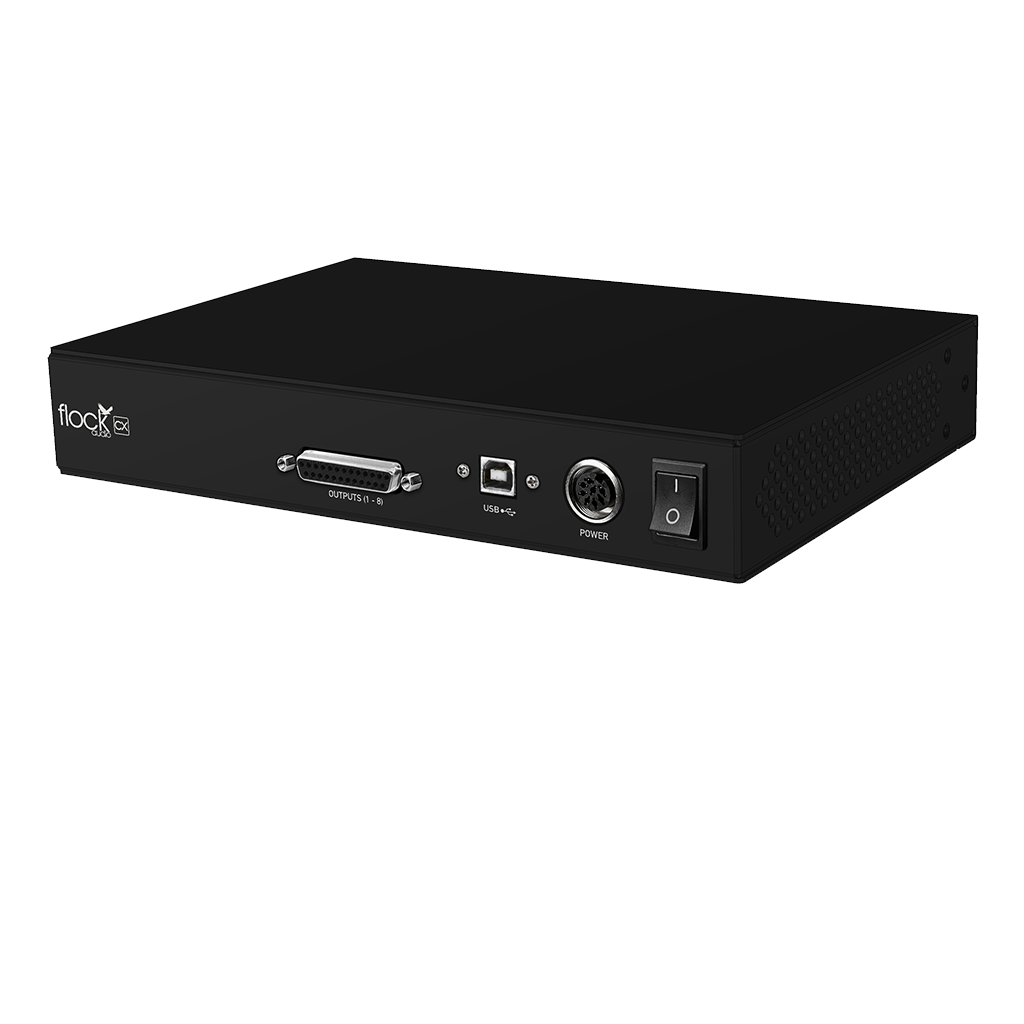

CX is an 8 Channel Standalone Module Compatible with all PATCH Series Models allowing all types of Analog Audio Signal Levels to be compatible to route through the PATCH Series (+4 Line Level Design) for the most clean and transparent analog audio routing experience. Assignable, Customisable & Controlled through the PATCH APP and PATCH APP DX Software.
Features

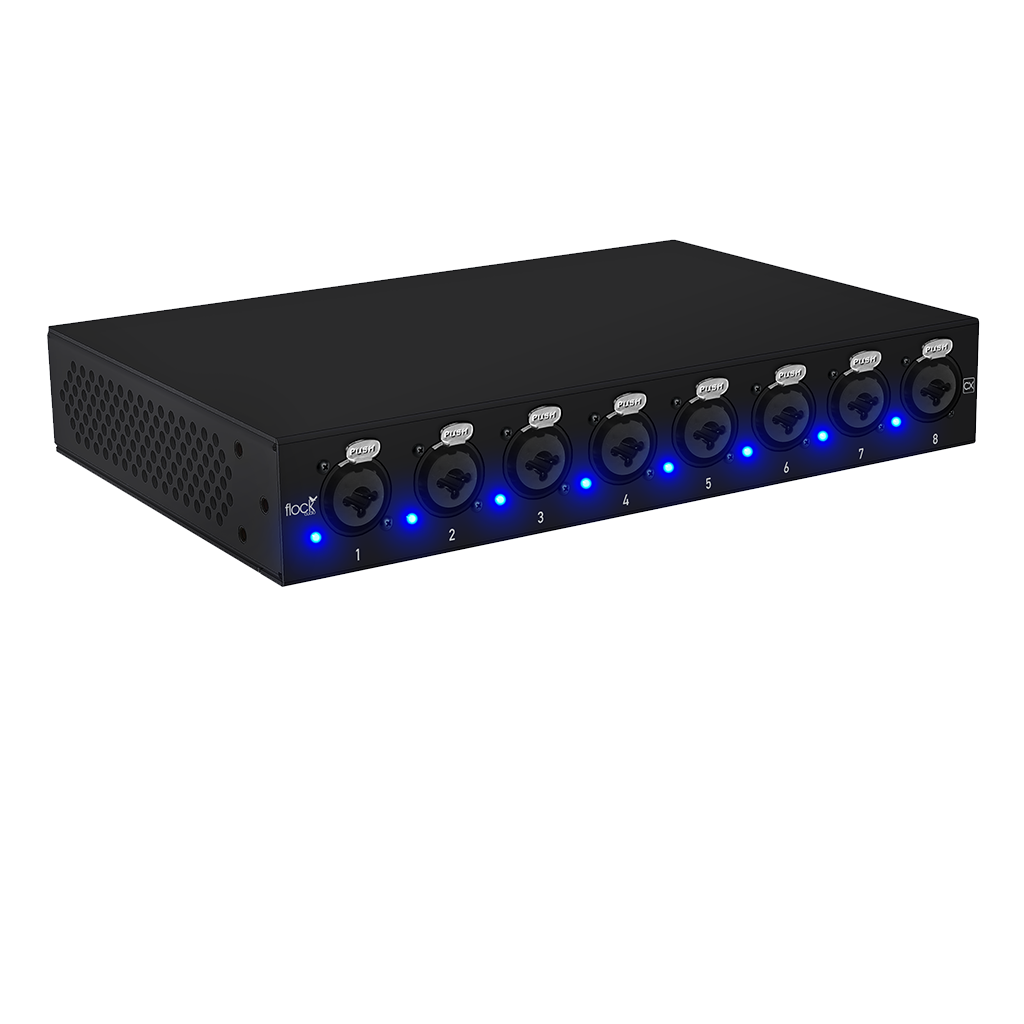

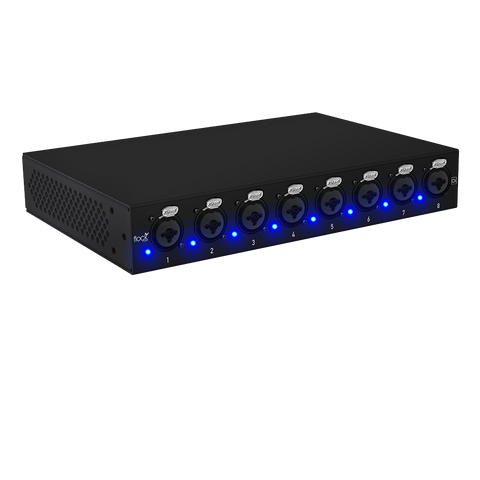

- 8 Channel Mic/Instrument Level XLR/TRS Combo Inputs
- 8 Channel Line Level DB-25/D-SUB Output Tascam Standard Pinout Format Connectors
- 8 Assignable Independent Channels of 48V Phantom Power
- PATCH APP & PATCH APP DX - Setup & Controlling Software (OSX, Windows, iOS)

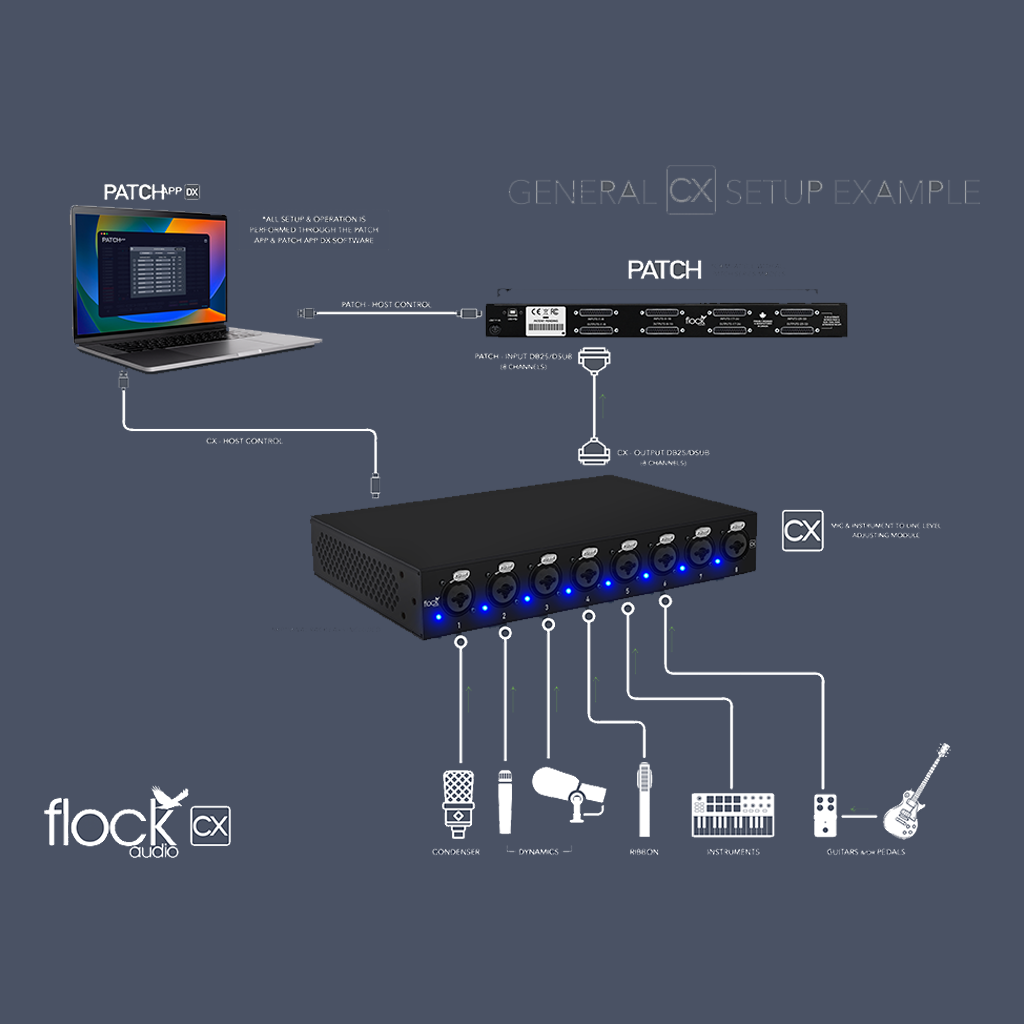

- Connect any type of analog audio signal to the PATCH Series via the CX Hardware
- No AD/DA Conversion, No Latency, 100% Sonically Transparent Analog Signal Path
- Stand Alone Desk Module or Rack Ear Mountable Package Design (Ears Included)
- External Power Supply w/ Threaded Locking Connector (IEC Cable Included)
- 10 Ft. - USB 2.0 (USB-A to USB-B) Cable for Host Control (Cable Included)
- Unit Dimensions: 1.75”(H) x 10.25” (L) x 7” (D) - 5 lbs
