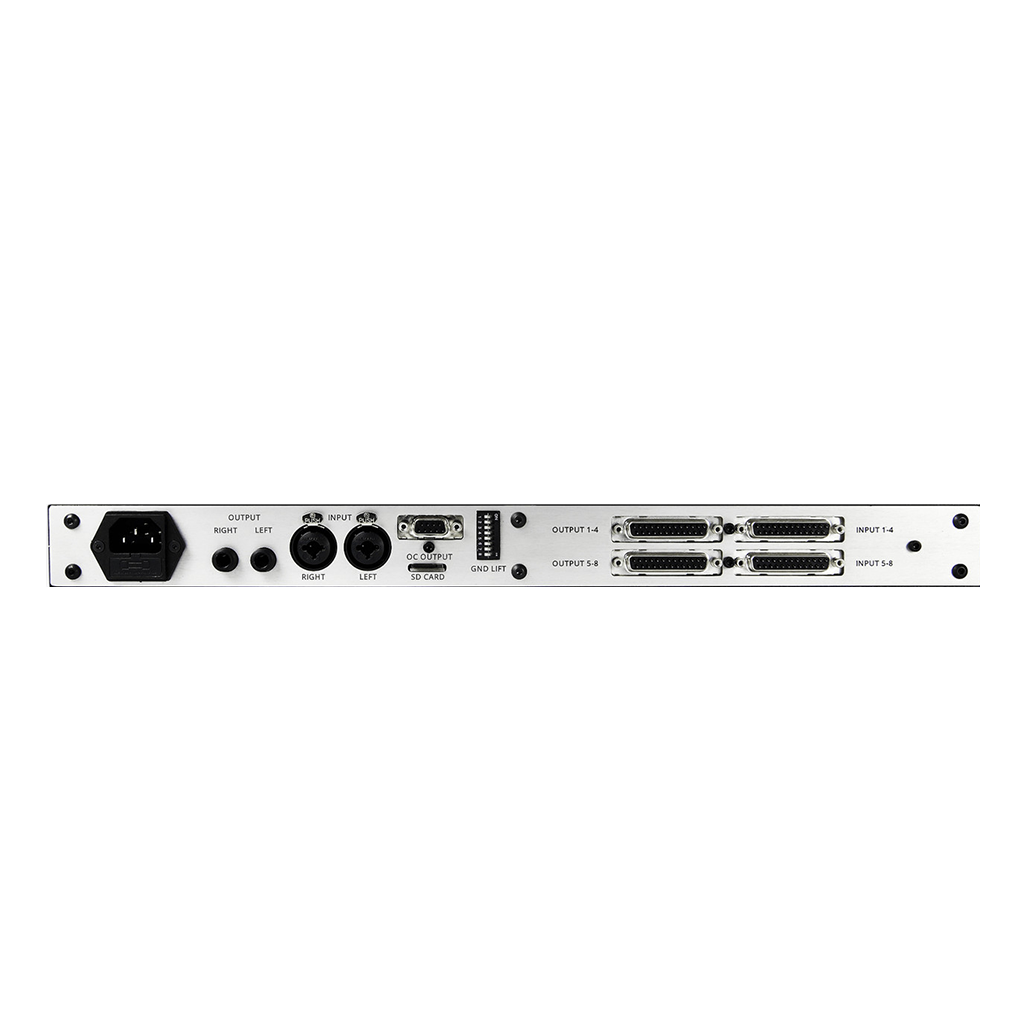

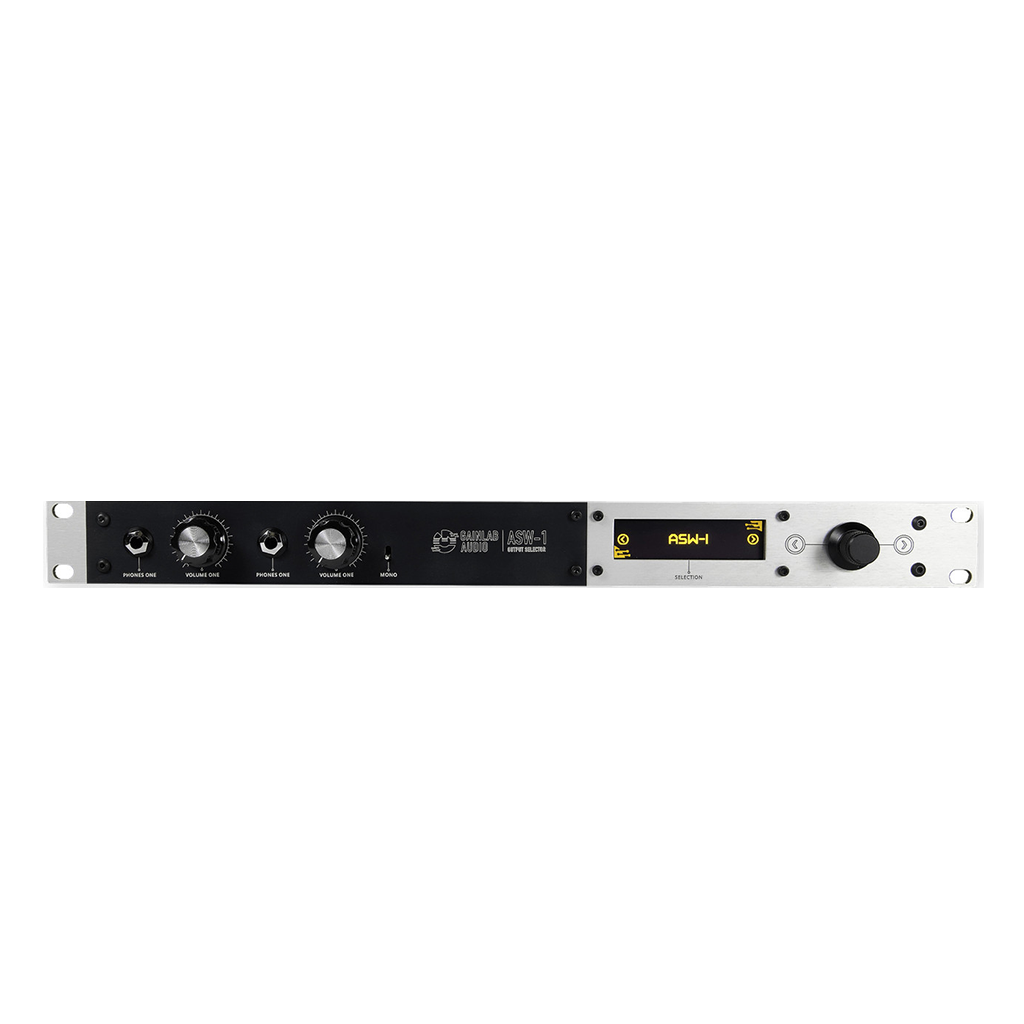

Gainlab Audio ASW1 Audio Output Loop Selector

Oceania Audio is the Authorised NZ Distributor

Gainlab Audio ASW1 Audio Output Loop Selector

Name: Gainlab Audio ASW1 Audio Output Loop Selector
Brand: Gainlab Audio
Price: 5939.00 NZD
Availability: OutOfStock

Gainlab Audio ASW1 Audio Output Loop Selector

$5,939.00 NZD

The Gainlab Audio ASW-1 Output, Audio Loop Selector is capable of selecting between 8 independent signal path loops by the user. The device features stereo, symmetric signal source inputs that can be switched in eight stereo directions. It also has two symmetric master outputs capable of receiving signals from eight stereo directions. Alongside the master outputs, the device includes two high-quality headphone amplifiers based on TPA6120.

Primarily designed for presentation purposes, the device can power eight different devices with stereo signals and provides monitoring capabilities on the stereo return signal from the device at line level through the master output and two stereo headphone outputs. Signal switching between paths is done with relays, ensuring that the quality of the sound is not affected in any way. Due to these characteristics, it can only be used for stereo source selection, in which case it can connect eight stereo sources to the symmetric master output. Naturally, the headphone outputs can also be used in this scenario. Consequently, it allows for stereo destination selection, where it can route the signal from the symmetric source input to eight different destination signal paths.

Features

Video Player Option (ASW-V)
Eight symmetric, stereo signal path loops
Symmetric, stereo master source
Symmetric, stereo master outputs
Two stereo, high-quality headphone outputs
Galvanic signal path connections
Naming of signal path loops
Open collector data output for indicating the selected signal path

Field of Application

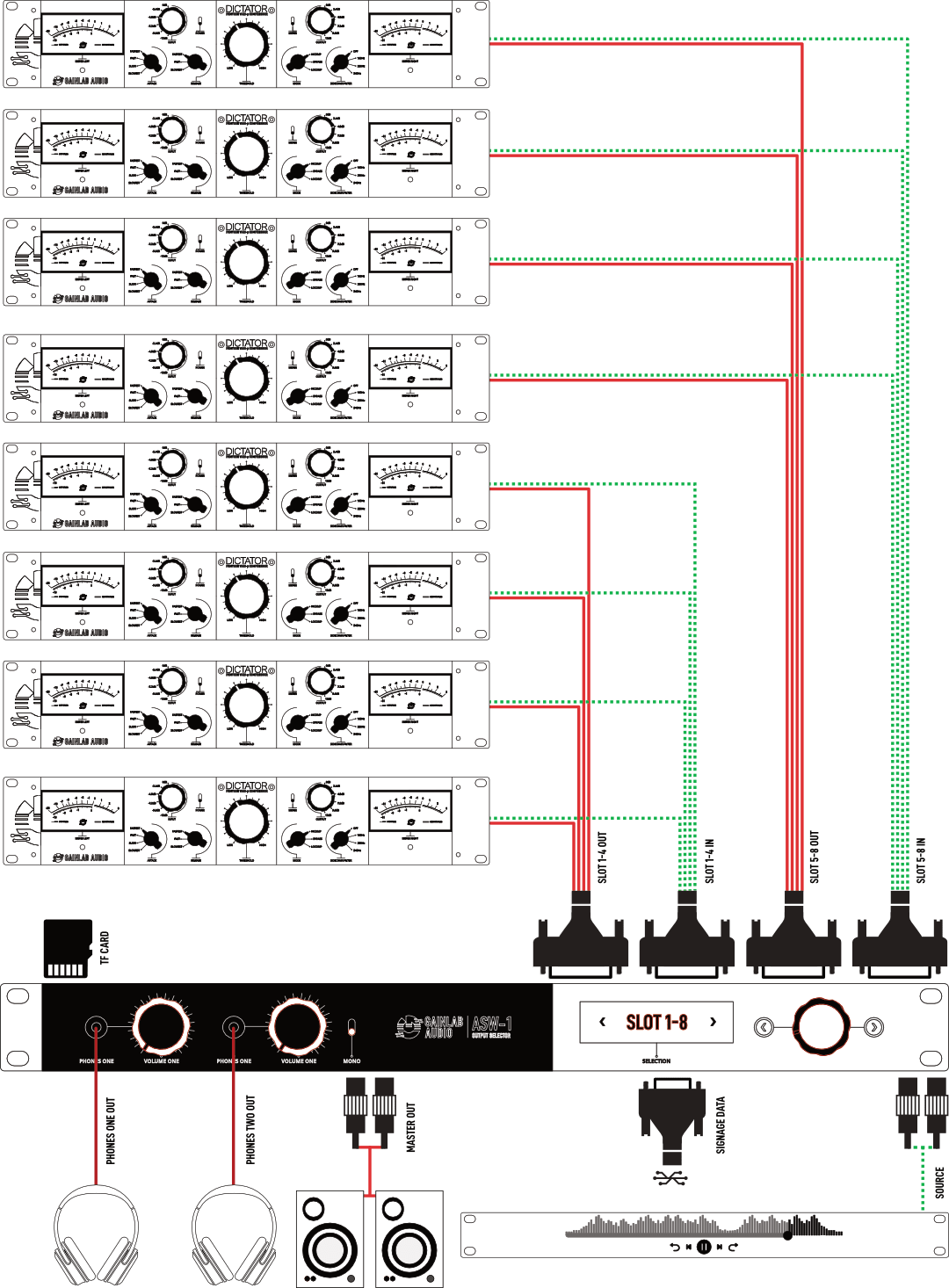

Eight-channel stereo audio loop selector

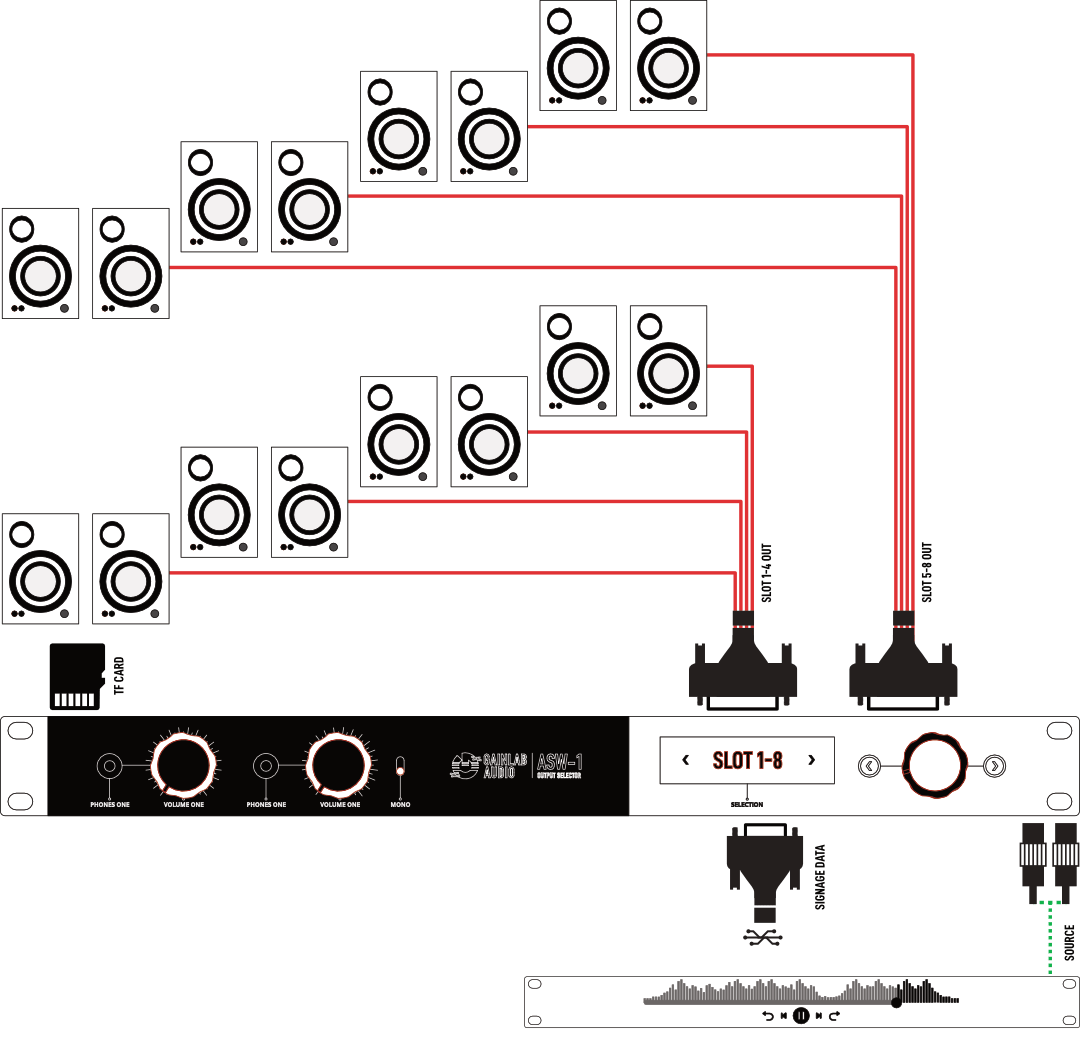

Eight-channel stereo source selector

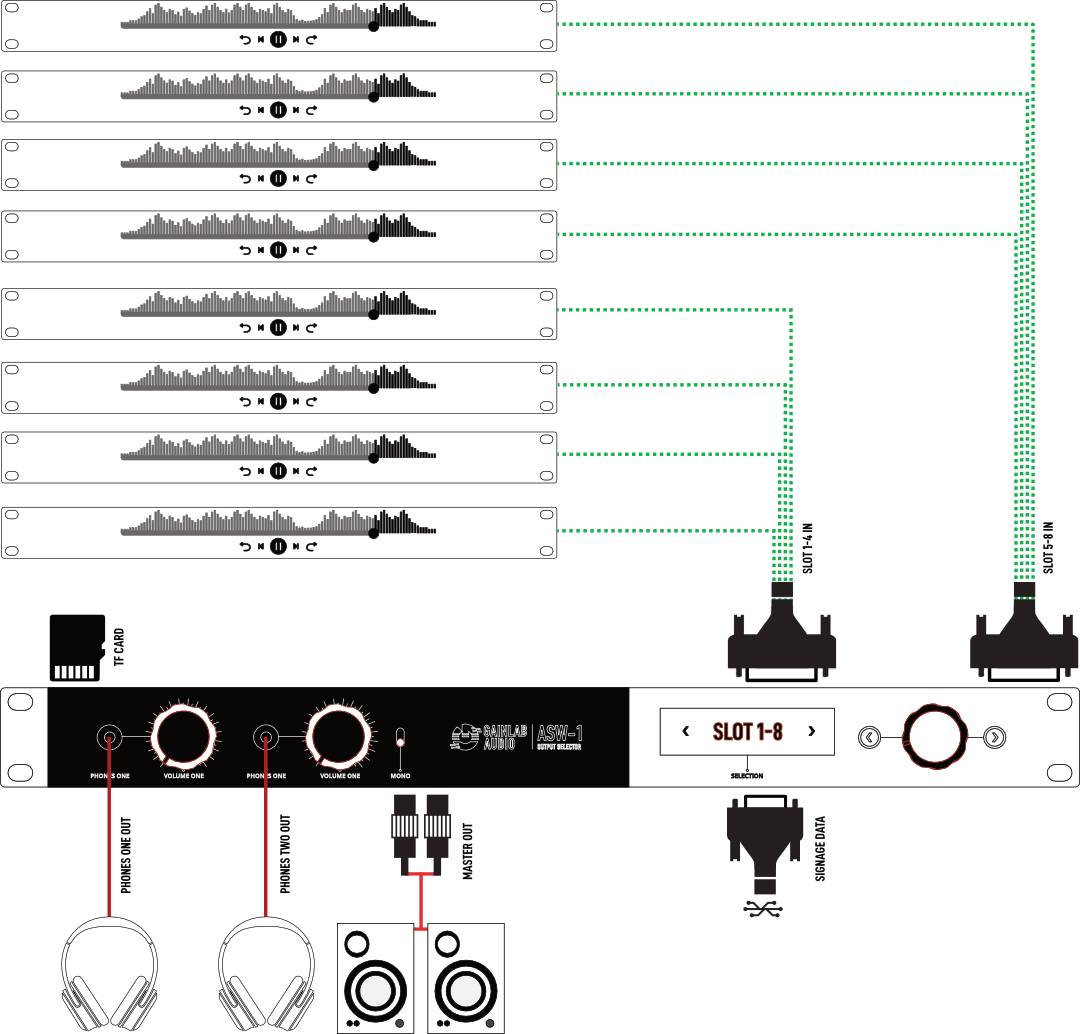

Eight-channel stereo destination selector

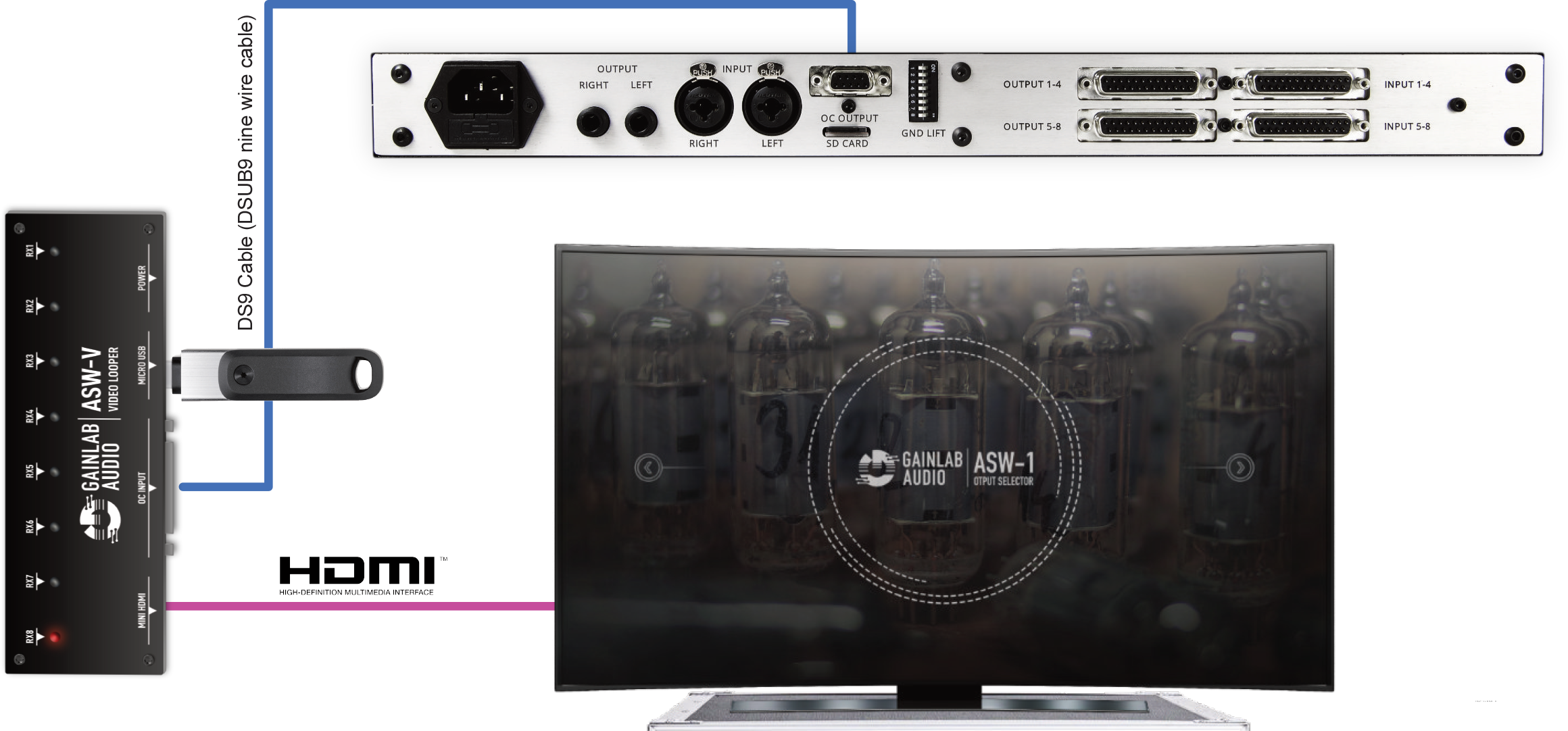

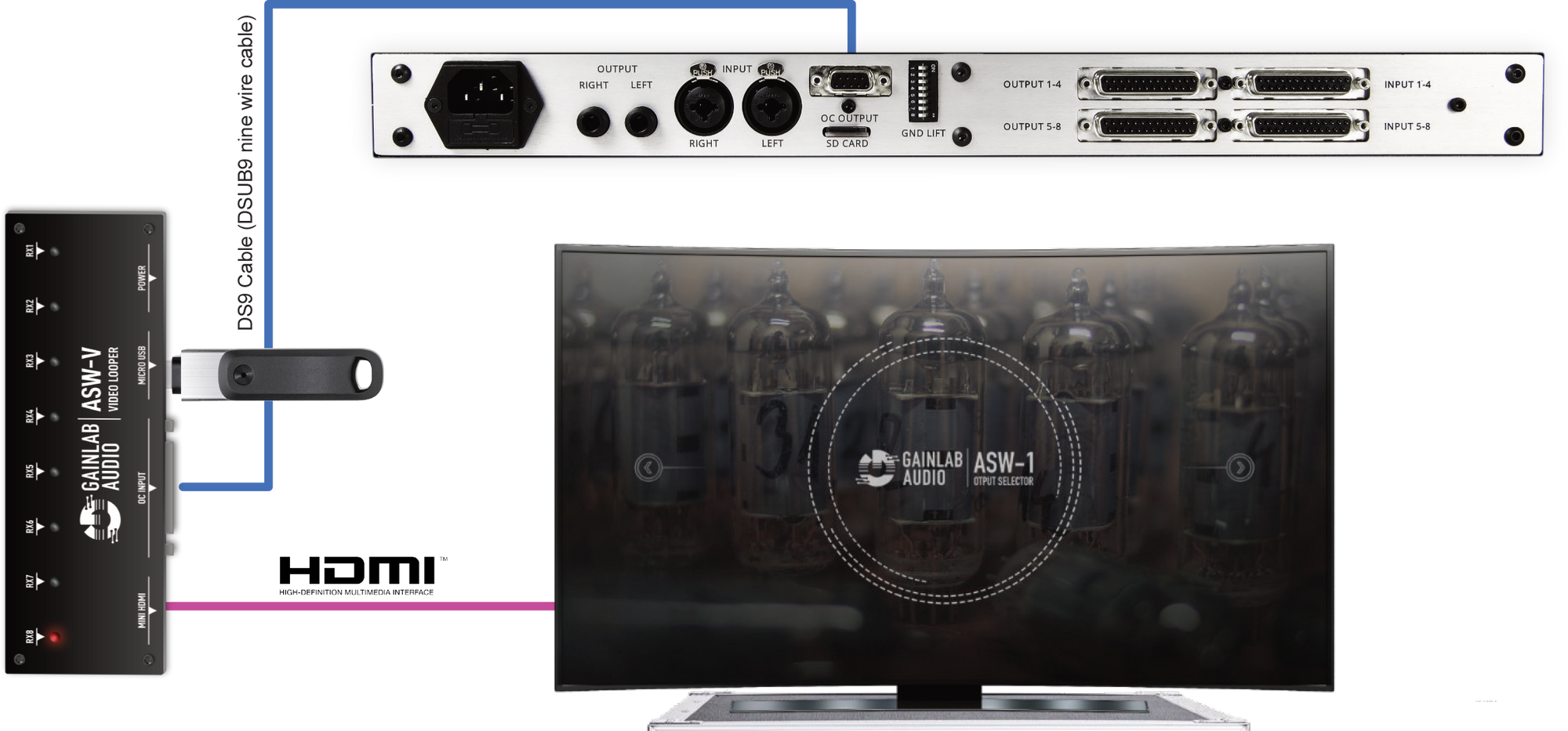

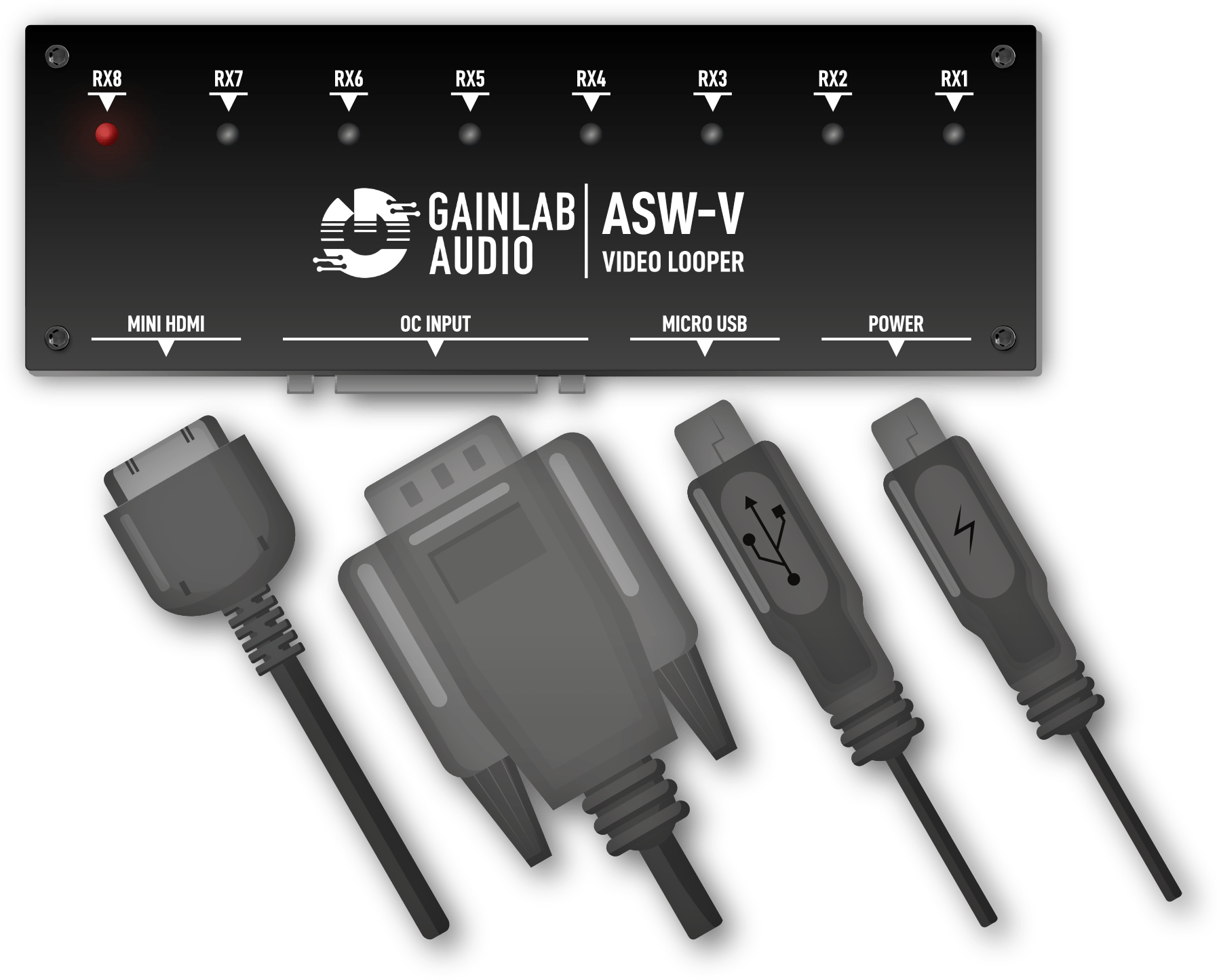

ASW-V Video Loop Player

The ASW-V is an auxiliary device for the ASW-1 Audio Loop Selector, which enables the playback of video files depending on what device slot selected on the ASW-1.

Just copy the video files corresponding to the slots onto the USB drive provided with the ASW-V, and as soon as you select a slot on the ASW-1, the corresponding video will start playing. No separate management software is required, and the contents of the storage device can be easily replicated. It plays video files from any USB storage device and outputs them via HDMI in FullHD resolution.

The ASW-V is not included in the package and must be purchased separately.
