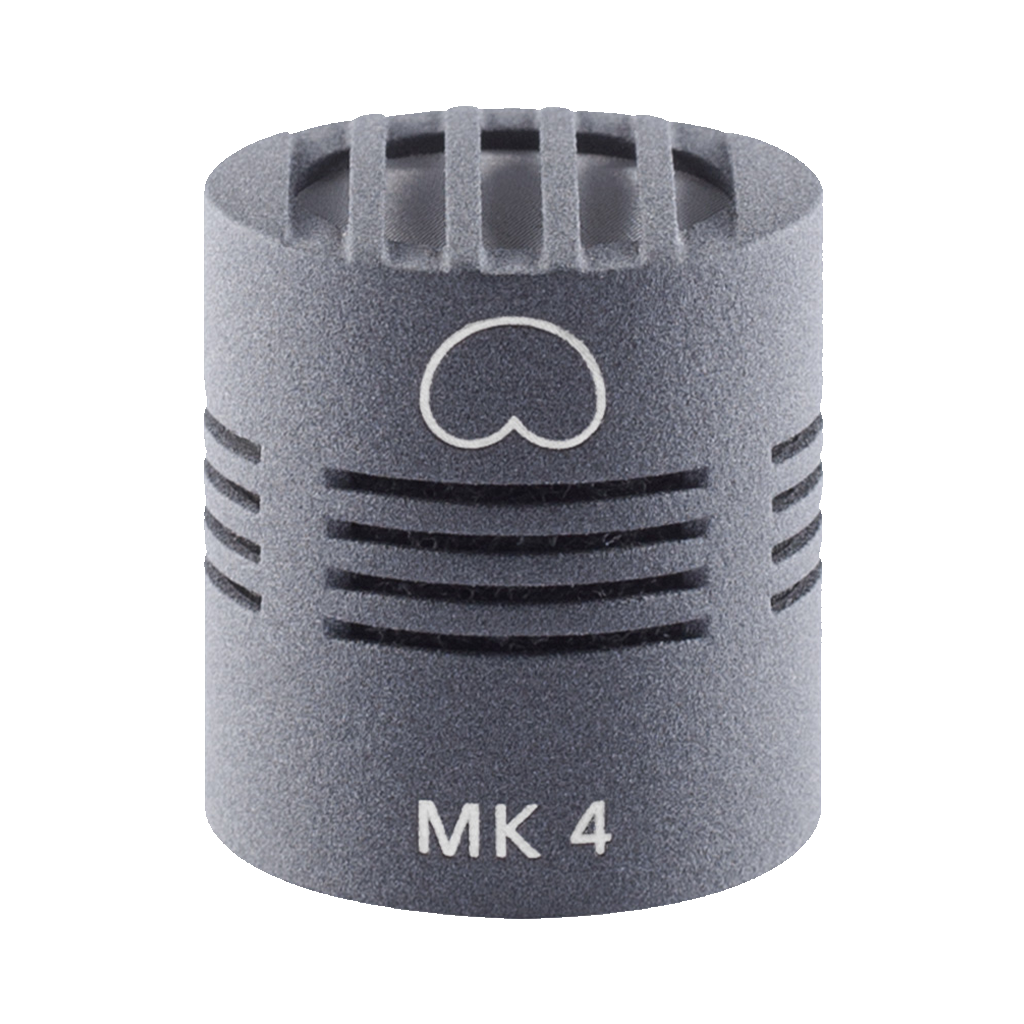

Schoeps Mikrofone MK 4 Cardioid Capsule

Oceania Audio is the Authorised NZ Distributor

Schoeps Mikrofone MK 4 Cardioid Capsule

Schoeps Mikrofone MK 4 Cardioid Capsule

$1,520.00 NZD
$1,520.00 NZD

The MK 4 has been a reference microphone for years in a wide variety of recording situations. Due to its transparent sound character and excellent attenuation of rear-incident sound, it reproduces sound sources very naturally. This has given the MK 4 a reputation as a universal "problem solver" even in difficult recording situations.

Its flat frequency response, and the constancy of its directional pattern for all frequencies, are the basis of the MK4’s sound quality. Even in the diffuse sound field its frequency response is flat, with a slight increase at 10 kHz compensating for high-frequency losses in the room.

Thus the sound image is transparent for direct-arriving sound, for sound arriving from the side, and for diffuse sound in the room (reverberation).

The MK 4 is a classic small-diaphragm microphone with all the advantages of this microphone type. Its frequency response and the consistency of its polar diagram from low to high frequencies are exemplary.

Like all SCHOEPS capsules, the MK 4 achieves its flat frequency response solely by its mechanical architecture, without any electronic filtering.

As a pressure gradient transducer, the MK 4 has a single diaphragm that is exposed to the sound from both the front and rear. The side sound inlets must therefore never be covered.

The “reach” (distance factor) of a classic cardioid such as the MK 4 is about 1.7 times that of an omnidirectional microphone. Thus even at greater distances from the sound source, direct sound can be obtained. The advantages of the MK 4 are shown especially when mixing several microphone signals - pickup of sound from the side is reduced in level but not subject to coloration.

At 90° the attenuation of the MK 4 is 6 dB, and at 180°, some 20 to 30 dB. Diffuse-incident sound is picked up 4.8 dB lower in level than front-arriving sound.

Features



Cardioid pattern

The best-selling Schoeps capsule

Directivity is highly independent of frequency

Universally applicable; preferred use as spot microphone, for acoustic instruments, and in conference recording

Often used in the main microphone pair for XY, ORTF and MS stereo recordings

Practice



The MK 4 is often preferred by opera singers and other trained vocalists. But its natural, transparent character also suits it very well for use in pop and rock applications, on stage or in the studio, where equalisation is a part of the plan. A microphone with a clear, neutral sound quality provides the ideal point of departure whenever special “colouring” is needed.

Specifications

Pickup pattern - Cardioid

Frequency range - 40 Hz - 26 kHz with CMC 6 / CMR

                              - 40 Hz - 41 kHz with CMC 6xt

Sensitivity - -36.5 dB (V/Pa), 15 mV/Pa with CMC 6

Equivalent noise level (A-weighted) - 14 dB with CMC 6

Equivalent noise level (CCIR) - 24 dB with CMC 6

Signal-to-noise ratio (A-weighted) - 80 dB with CMC 6

Maximum sound pressure level (THD < 0.5 %) - 131 dB-SPL with CMC 6

  • Length - 22mm
  • Diameter - 20mm
  • Weight - 17g

Surface finish - Matte grey

                         - Custom colour: nickel, chromagreen
