FEATURES
*Cardioid for close speech pickup (<20 cm)
*Low-frequency response rolloff (-6 dB at 100 Hz)
*Polar diagram identical as the MK 4
*Preferred applications: close speech pickup, public address systems
DESCRIPTION

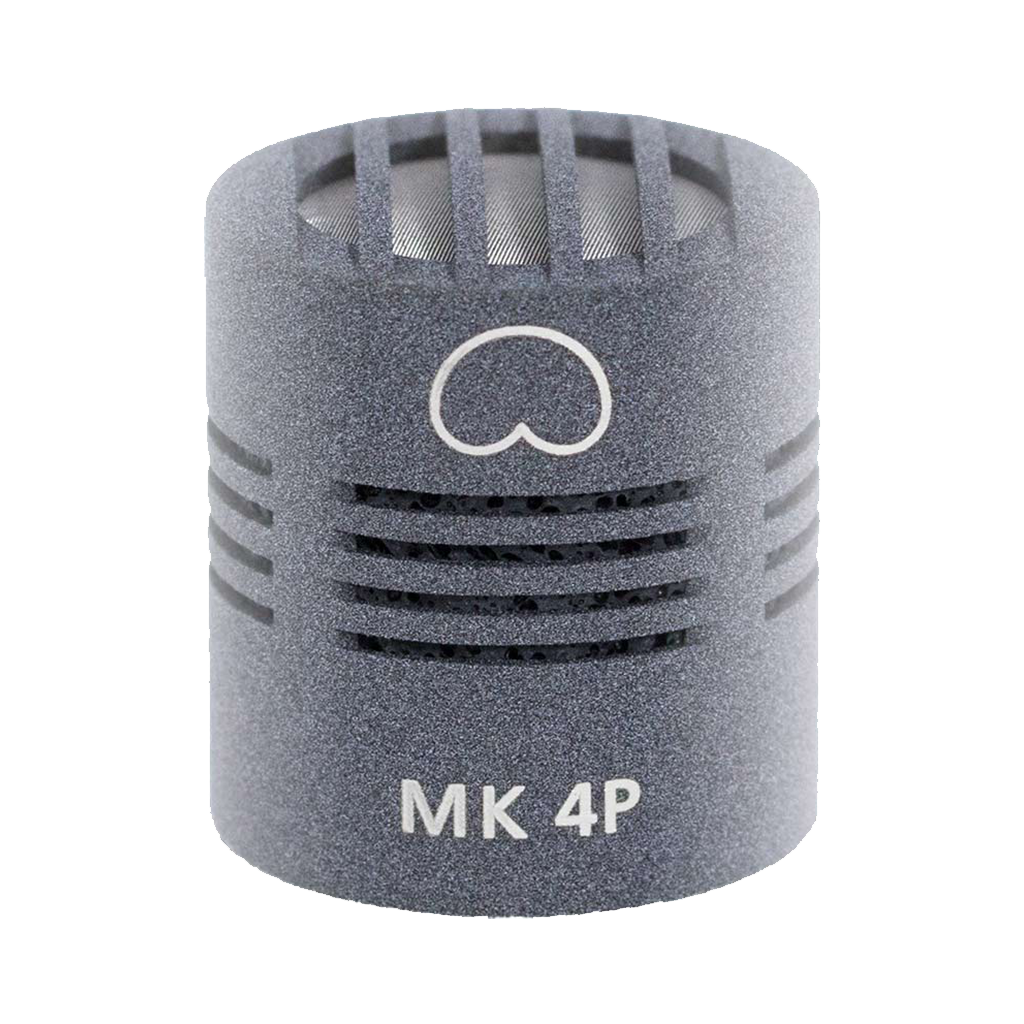

This cardioid capsule is designed for the very closest speech pickup, i.e. directly in front of the speaker’s mouth.
Its low-frequency rolloff is compensated by proximity effect. Thus it has (up to the point of its high-frequency emphasis) a flat frequency response for the speaker’s voice, while showing a rolloff at low frequencies for all sound that originates from a greater distance. As a result, background sounds are picked up less strongly than the person speaking.
TECHNICAL SPECIFICATIONS
*Pickup pattern - Cardioid
*Frequency range - 40 Hz - 26 kHz with CMC 6 / CMR
40 Hz - 42 kHz with CMC 6xt
*Sensitivity - -36,5 dB (V/Pa), 15 mV/Pa with CMC 6
*Equivalent noise level (A-weighted) - 14 dB with CMC 6
*Equivalent noise level (CCIR) - 23 dB with CMC 6
*Signal-to-noise ratio (A-weighted) - 80 dB with CMC 6
*Maximum sound pressure level (THD < 0.5 %) - 131 dB-SPL with CMC 6
*Length - 22 mm
*Diameter - 20 mm
*Weight - 17 g
*Surface finish - matte gray
custom color:
nickel, chromagreen
