DESCRIPTION

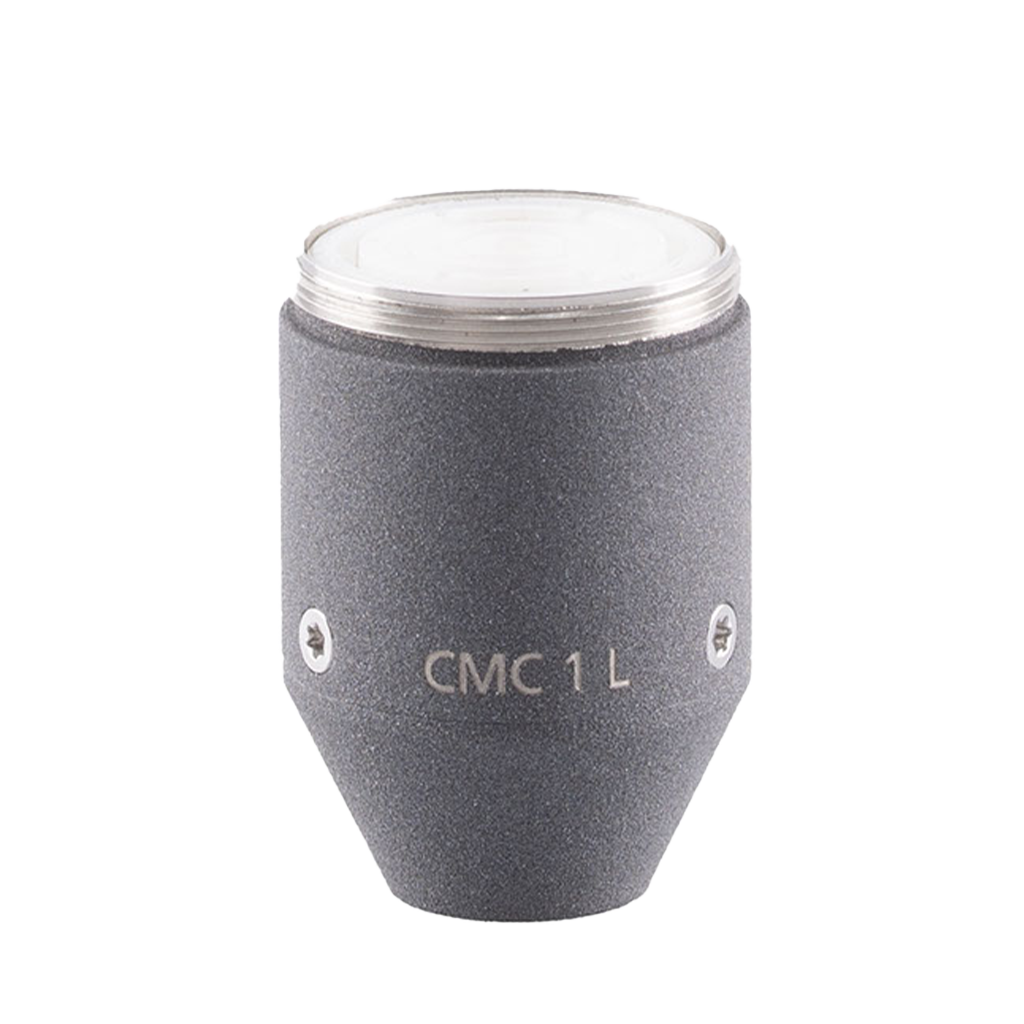

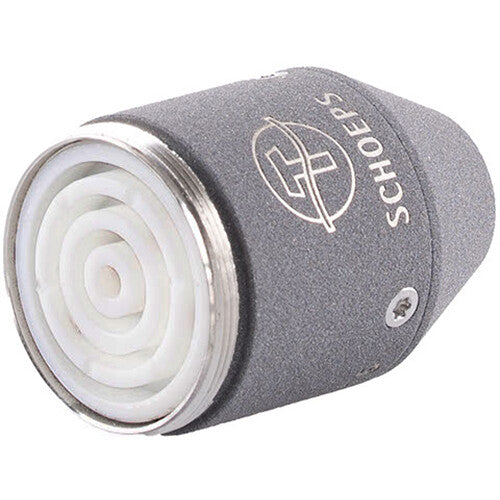

The CMC 1 is our new, small Colette microphone amplifier, about one-third the length and 53% lighter than the CMC 6. It is compatible with all components of the Colette system and can be used in place of the CMC 6 without compromise, for all applications in which the size and weight of the microphone play a role.
At SCHOEPS, “uncompromising miniaturization” means that the electrical characteristics of the CMC 1 are equal to, or even better than, those of the CMC 6. Through modern electronic design, these outstanding electrical properties have been achieved:
* High maximum SPL: 135 dB-SPL with the MK 4 (0.5% THD or less)
* Very low current consumption: 2.0 mA at 48 Volts
* Operates on 48 V or 12 V phantom power, reliable operation even if powering is somewhat marginal
* Very high immunity from RF interference with the SCHOEPS RFI Shield; high immunity to cable-induced hum and other interference (field tested with Audio Limited A 10, etc.)
* Flat frequency response
* Very low distortion
* Constant output impedance across the audio frequency range
* Balanced, direct-coupled, class-A output circuit
* Output is filtered in the ultrasonic range to prevent interference, e.g. from camera autofocus
A complete Colette-series microphone consists of an MK capsule and a CMC amplifer. All capsules and active accessories of the Colette system are compatible with the CMC 1.
The CMC 1 works with standard 12-Volt or 48-Volt phantom powering. Power consumption is lower at 12 Volts--an advantage for battery-powered operation
FEATURES

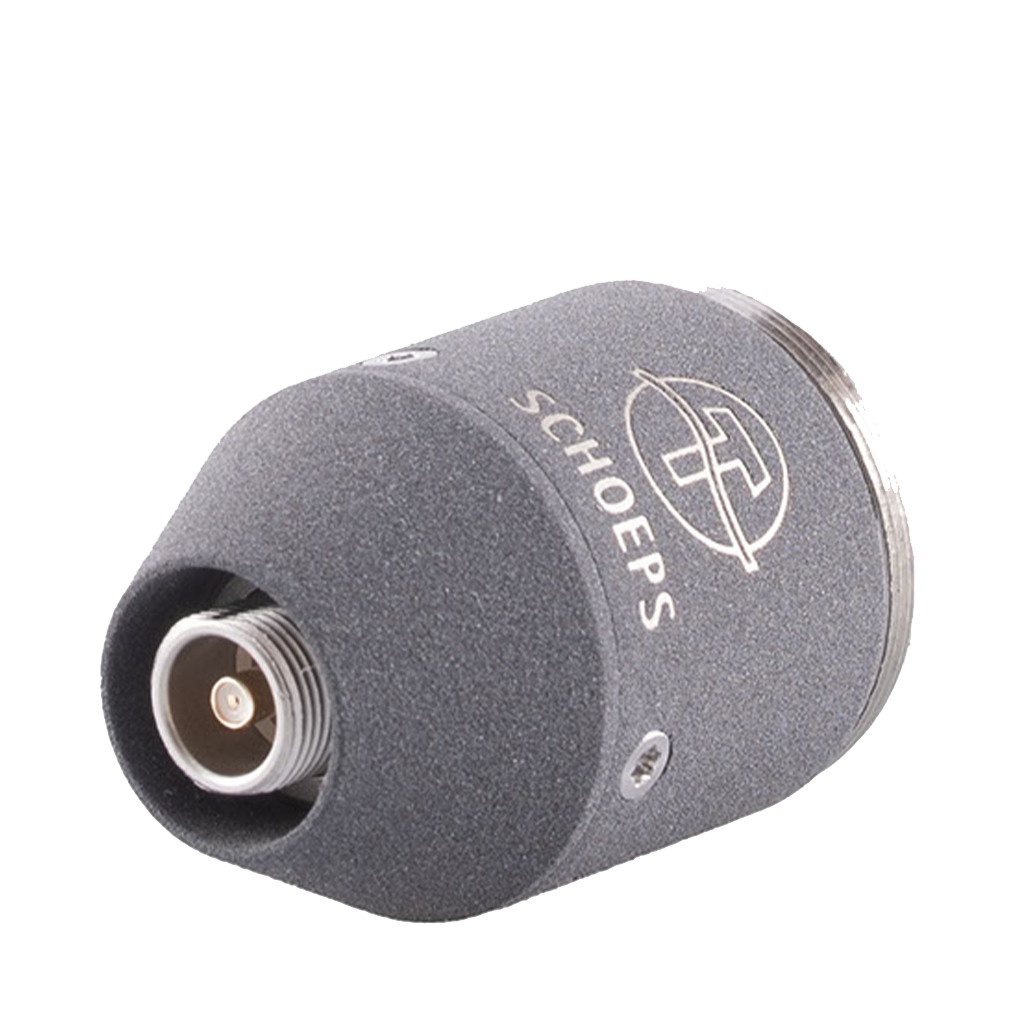

* Variant of the CMC 1 U with miniature Lemo output connector
* K 5 LU (5 m cable with XLR-3M plug) and SGC stand adapter are included
* Fully equal alternative to the well-known CMC 6
* Compatible with all available MK capsules and active Colette accessories, e.g. CUT 60 or RC
* Compatible with all accessories of the CCM series, e.g. TR L oder STA
* Recommended accessories for boom use are the same as for CCM microphones, e.g. MINIX CCM LU or Rycote INV-5.
PRACTICE
The optimized RF protection of the CMC 1 makes it the ideal microphone for use with transmitters such as the Audio Limited A 10. The use of the CMC 1 U and CMC 1 L versions on the A 10 has been successfully tested.
Find info on the pin assignement of the adapter cable between the two devices here.
TECHNICAL SPECIFICATIONS
*Frequency range - 20 Hz-20 kHz
*Sensitivity - see corresponding capsule
*Maximum output voltage - 1,8 V (5 dbV) with 1kΩ load
*Maximum sound pressure level (THD < 0.5 %) - 135 dB-SPL (P48) with MK 4
131 dB-SPL (P12) with MK 4
*Low cut filter - 20 Hz, 12dB/oct
*Output impedance - 50 Ω +/- 1 Ω (8 Hz - 50 kHz)
*Minimum recommended load impedance - 1 kΩ
*Common mode rejection ratio (at 1 kHz) - > 55 dB
*Maximum cable length - > 400 m / ~1300 ft
*SCHOEPS RFI Shield - Yes
*Powering standard / Valid range - P48 / 30-52 V
P12 / 11-13 V
*Current consumption - 2mA (P48)
3 mA (P12)
*Output - Lemo, analog, 1 channel
*Length - 25.5 mm / ~1 ''
*Diameter - 20 mm / 0.8''
*Weight - 28 g / ~1 oz
*Surface finish - matte gray
custom color: nickel, chromagreen
