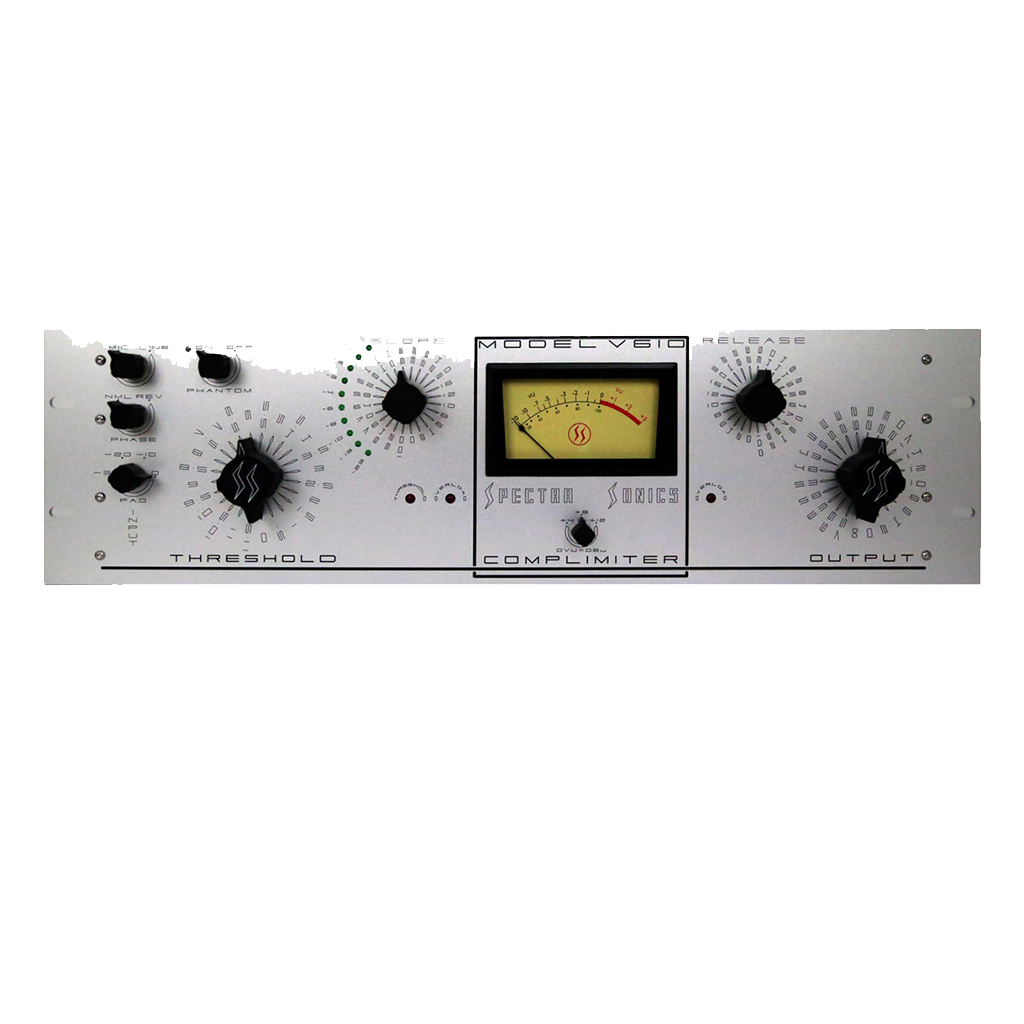

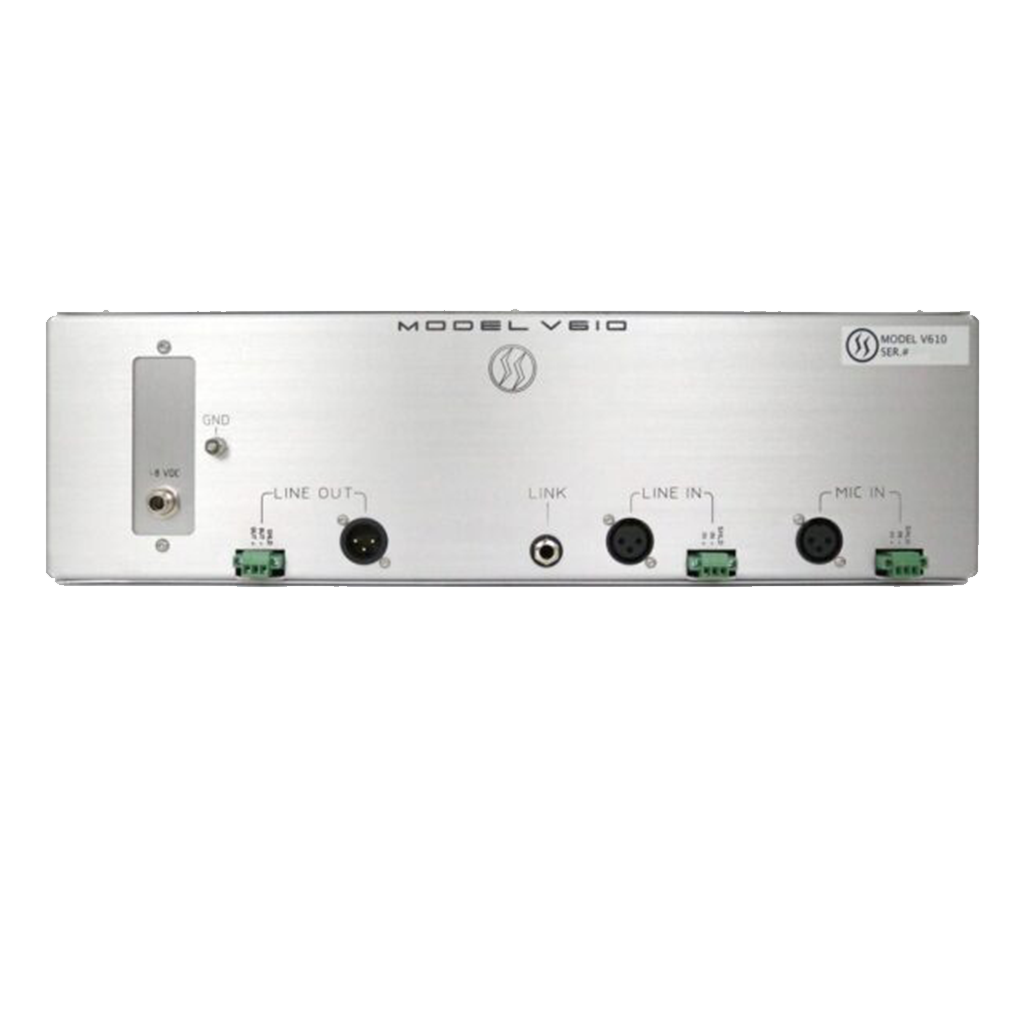

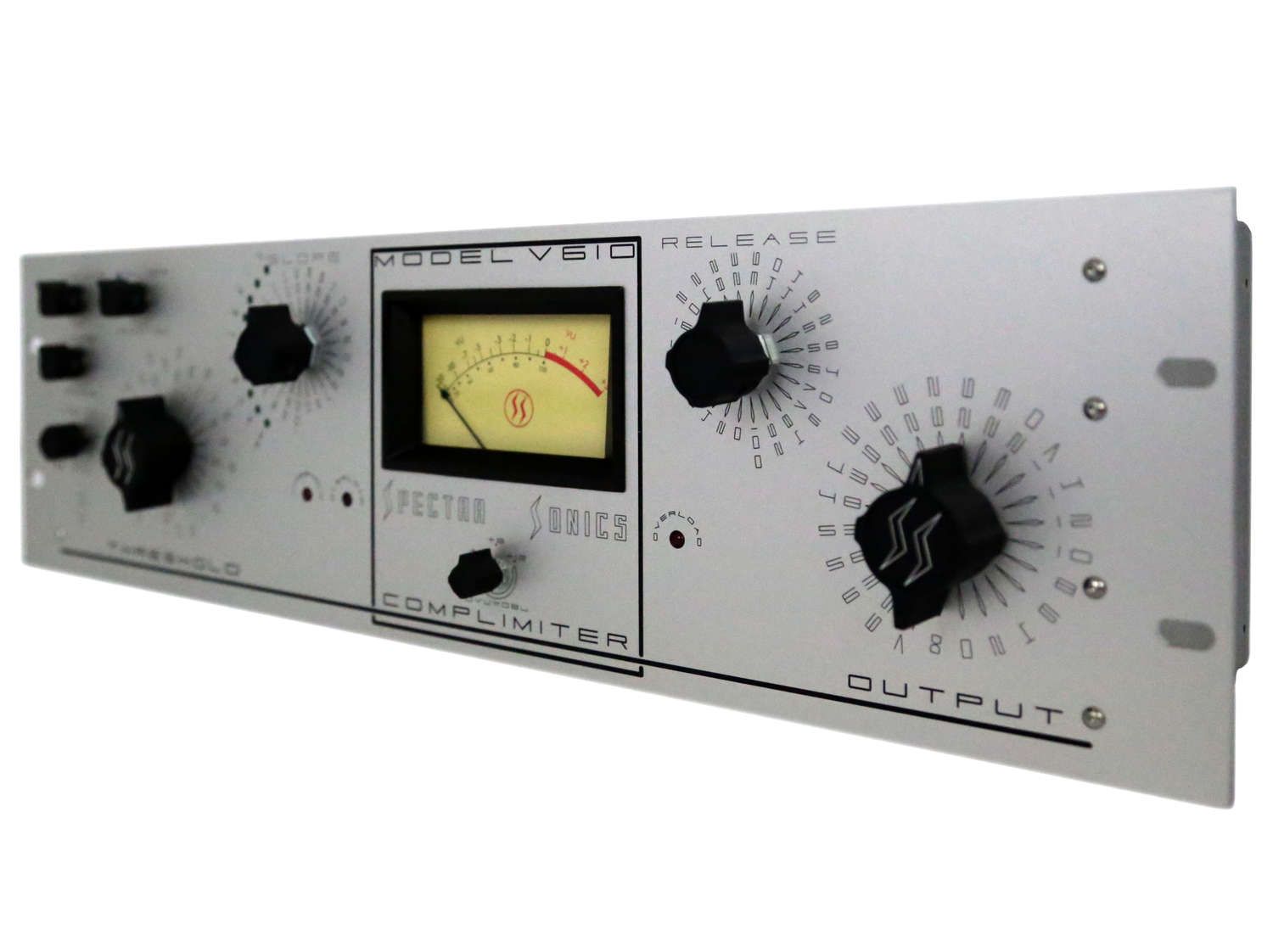

Spectra 1964 V 610 COMPLIMITER

  • Sale
  • Regular price $4,899.00
+ Free Shipping

In stock with Supplier
Orders are shipped in 7 - 10 business days.

Questions? Spot a better price?
Call +64 9 845 7800 or Contact us

The Spectra 1964 model V610 is a required addition to any mastering suite. In many mastering signal chain configurations, the V610 is used as the first device, as a peak limiter. The result is dramatic and measurable. With the elimination of audio program peaks, (inaudibly), signal processing devices that follow the V610 have headroom increases of 6-12dB, a reduction of noise and overload distortion, and provide extended harmonic content that is lost during conventional amplifier overload.

In the audio tracking environment, the V610 will rival, and in most cases, exceed any stand-alone, or mixing console microphone preamplifier, in terms of headroom, articulation of harmonics, and overall reduced distortion. As a vocal microphone preamplifier, excessive level changes will be easily accommodated by a compression circuit that is both fast and transparent. Guitar tracks will be both accurate, and harmonic rich. For the first time, many musicians will experience the true sound of an instrument that is operating in a peak free environment.

Like other Spectra 1964 Complimiter products, the V610 shares the revered and unequaled 601 Complimiter module. Originally introduced in 1969, the 601 set a standard that is well beyond the capabilities any other compressor limiter circuit. The V610 is an enhanced version of the C610, in that it allows for easy recall of prior settings, in a high resolution dB format. The ultra high quality Elma switches feature mil spec metal film resistors, and long lasting contacts. In fact, the three space format of the V610 is due to the physical size of the switches on the control surface. In addition, the V610 employs the model 110A amplifier for makeup gain. The result is low distortion and noise, with a +24dBu output, (irrespective of audio transient peaks).



SPECIFICATIONS:

* Input Impedance: 600 Ohms

* Output Impedance: 2.5k Ohms

* Input Pad: Selectable -10dB, -20dB, -30dB

* Maximum Gain: 65dB

* Threshold attack level: -40 dBm

* Maximum Output: +24dBu
* THD: Less than .01% @ 30Hz-20KHz, at +22 dBm, up to 30dB compression,      dependent on release setting
* Signal/Noise: Better than 80dB below +4dBm output, with -40 dBm input, 20Hz to 20kHz

* Frequency Response: +/- 0.1dB 20Hz-40KHz

* Compression/Limiting Ratio: Continuously variable from 1.1:1 to 100:1
Attack time: 100 nanoseconds to 1.2 milliseconds, automatically variable.

* Release Time: Continuously variable from 50 milliseconds to more than 10 seconds

* Phantom Power: 48VDC
